Description

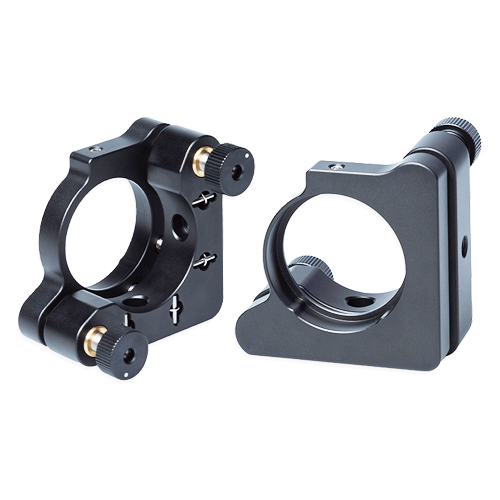

Mirror mounts are important parts of optomechanical products. Optical mount mainly solves the installation (clamping and fixing) and adjustment of various optical components. The kinematic mirror mount can make two-axis adjustment on the optical lens. There are two dimensions of X and Y. MTMSO series circular optical adjustable mirror mount adopts spring structure and imported high-quality thread pair. Optical lens mount is very suitable for fine adjustments of small amounts.
Various sizes are available. It provides a clamping solution for 0.5 inch to 4.0 inches optical lens. The M6 thread and M4 countersunk hole on the optical mount have a composite structure. This can be combined with most mechanical structures. Optical kinematic mount also provides products with locking function and a product line for left-hand and right-hand use. Optical lens mounts refers to a bracket for fixing and adjusting optical components. Generally, it can fix the kinematic mirror mount on the optical table by M6 screws.
From the structural point of view, the optical adjustment mirror mounts usually includes several components, such as a fixed plate, a movable plate, a driving mechanism, a reset mechanism (spring), and a locking mechanism.
The Application of Kinematic Mirror Mount
The connection method of the female thread of the mirror frame mounts and the PD optical mounting posts. Firstly, put the lens into the round frame. Secondly, tighten the screws above the mirror plate. Then put the M4 screw into the countersunk hole of the optical holder mount. Finally, fix it with the M4 threaded hole of the female threaded rod.
The connection method of the optical mounts and the male thread of the PDL support rod. Firstly, rotate and tighten the screw hole of the frame and the corresponding M6 screw of male thread support posts. Through precise screw adjustment, the mirror frame mounts can be finely adjusted in pitch. In order to improve the stability of the optical path, we also provide various mirror mounts with locking function.
It has wide application in precision optical experiments. For example, you can use it to adjust the two-dimensional angle of the optical lens. Optical mountis mainly used to adjust the direction of the beam. So as to realize the rapid and precise positioning of the beam.
The Size of Kinematic Circular Optical Mounts
|
Model |
Clamping Diameter (mm) | Max Clamping Thickness (mm) | Center Height (mm) | Screw Pitch | Adjustment Range |
Weight（KG） |
|
MTMSO-05L |
12.7 | 6 | 15 | 0.25 | ±4° |
0.04 |
|
MTMSO-05R |
12.7 | 6 | 15 | 0.25 | ±4° |
0.04 |
|
MTMSO-08L |
20 | 8 | 25.4 | 0.25 | ±4° |
0.12 |
|
MTMSO-08R |
20 | 8 | 25.4 | 0.25 | ±4° |
0.12 |
|
MTMSO-1L |
25.4 | 8 | 25.4 | 0.25 | ±4° |
0.11 |
|
MTMSO-1R |
25.4 | 8 | 25.4 | 0.25 | ±4° |
0.11 |
|
MTMSO-1.2L |
30 | 8 | 25.4 | 0.25 | ±4° |
0.15 |
|
MTMSO-1.2R |
30 | 8 | 25.4 | 0.25 | ±4° |
0.15 |
|
MTMSO-2L |
50.8 | 8 | 38 | 0.25 | ±4° |
0.2 |
|
MTMSO-2R |
50.8 | 8 | 38 | 0.25 | ±4° |
0.2 |
|
MTMSO-3R |
76.2 | 13 | 50 | 0.25 | ±4° |
0.3 |
|
MTMSO-4R |
101.6 | 13 | 68 | 0.25 | ±4° |
0.7 |
Features of Optical Mirror Mounts
◆M6 x 0.25 fine thread screw adjustment. Besides, the nuts can lock the screw axially to prevent vibration from loosening;
◆High-performance tension spring reset, uniform reset force, reduce stress;
◆Adjustment range of mirror mounts: ±4°;
◆Open structure, fast card installation, large aperture;
◆Teflon support to protect the lens;
◆Mounting holes in two directions, suitable for different light path directions;
How to choose the optical mount?
The application of optical adjustment mirror mounts is mainly to fix and adjust the optical components in the optical experiment. Product stability, accuracy, functions, and dimensions are the first issues to be considered when purchasing.
The optical adjustment mounts series are all manually adjusted. The drivers mainly include fine thread screws and minute cards. The minute card is used for quantitative adjustment. The fine thread screw cannot be quantitative. However, the ultra-fine thread with 0.25 pitch provides higher resolution and is inexpensive.
- 1. According to the size of the lens, it is divided into one inch, two inches and other different sizes of clamping diameters;
- 2. According to different clamping requirements, the optical adjustable mount is divided into top wire structure, fixed structure, and pressure ring structure;
- 3. According to the requirements of the dimensions of use, the mirror mounts is divided into one-dimensional, two-dimensional, three-dimensional, four-dimensional, etc.
In order to improve the efficiency of optical mount selection, we recommend the following methods:
1. Please confirm your optical components, such as type, shape, size, etc.
2. Confirm the use requirements of optical components. For example the lens usually does not need to adjust the pitch and yaw. But the reflector/beam splitter adjustment mirror mounts must have this function. Besides for the wave plate, polarizer and other components, the most basic use requirement is to rotate around the center of the light path.
3. Determine the height of the center of your optical path so that you can correctly select the relevant accessories, such as post, pole holder, base plate, etc.
